Teaching Tool

Teaching Tool

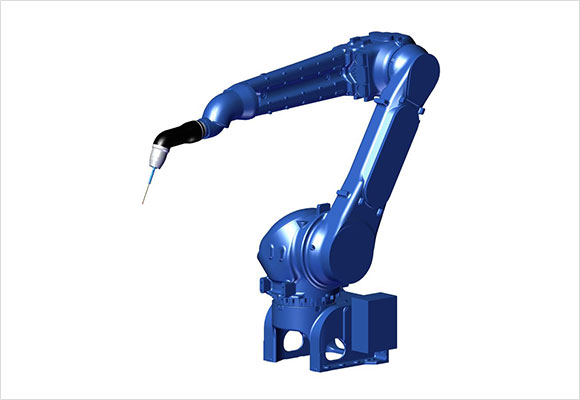

Teaching tools help operators maintain a constant distance between the robot and the conductor to operate the painted robot with correct TCP(Tool Center Point).

Features
  • · Accurately identify the spray area to increase paint accuracy
  • · Easy detachable design
  • · Provides easy storage and portable toolbox

Components

Item Quantity Size
Tool Box 1 315 mm (W) * 200 mm (H) * 950 mm (D)
Magnet Bush Assy 2 48.2 mm
Gun Adapter Long type 2 100 mm
Short type 2 200 mm
Tip Sub Assy Long type (White) 2 169 mm
Short type (White) 2 139 mm
End Cap 4 -
