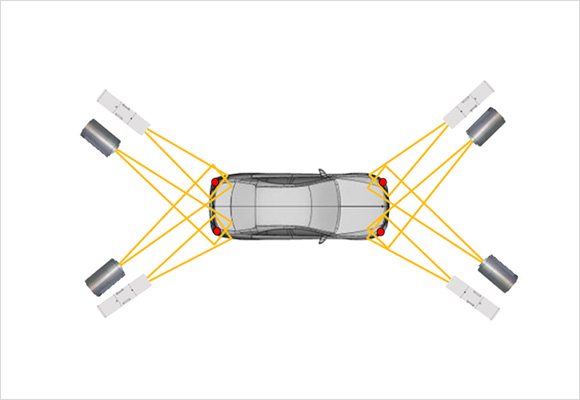

Each of the four cameras per robot zone increases the accuracy
of the sealing process by comparing the pre-set position with
the current position through distance recognition of the robot
and the body.
Functions
Measurement of positioning of the body
Body - robots distance monitoring to prevent collision
CGS

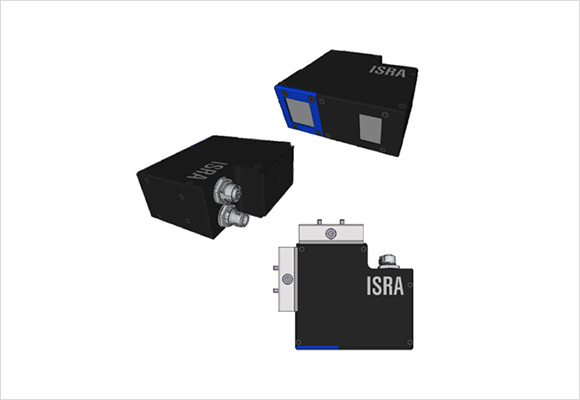

The CGS vision is attached to one robot per robot to modify the
actual working path for each robot, taking into account the
deviation of the preset position and the current position.
This vision is especially applicable to cosmetic sealing that
requires high precision.
Functions
Analyze the body's overall positional deviation and path segment
Partial 3D robot path positioning
Specification
Camera
PoE GigE
Illumination
6 LED Stripe lines with processing on board LED area Light
Measurement distance
150mm
Measurement volume
84 x 64 x 60㎣
Resolution
X - 0.07 mm / Y - 0.07mm / Z - 0.12mm
Dimensions
105 x 45 x 95㎣
Weight
Approx. 800g
Cables
One (GigE + PoE + trigger via Ethernet) One Power/Control
