Solution Component

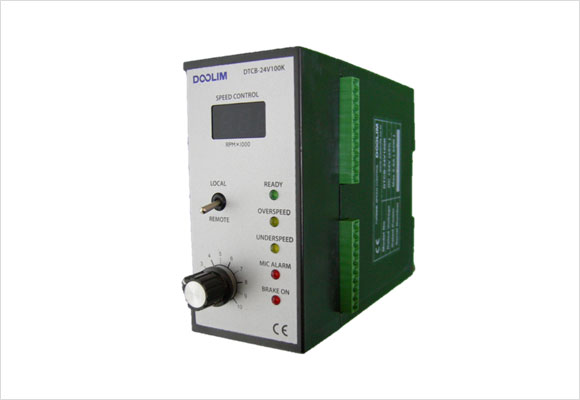

Turbine Board

The turbine board receives turbine speed via the microphone to detect and control the number of rotations in the bell cup.

Technical Details

Size 50(w) x 102.4(h) x 128 (d) mm
Rating DC 24V (±5%) 0.9A(22W)
Operating Temperature 1 ℃ (34 ℉) ~ 50 ℃ (122 ℉)
Power Consumption Max. 22W
